Sketch Mode
The hand-editing surface — select, move, copy and delete, move buildings, place tables and arresters, draw roads, corridors and cable trenches, and recompute the plant totals.
The generated layout is a starting point. It knows what the boundary file told it: where the fence runs, where the water is, where a transmission line crosses. It does not know that the north-west corner is a spoil heap, that the owner wants two tables left out beside the access gate, or that the trench to the second control room has to follow an existing culvert. Sketch Mode is where you put that knowledge into the design.
Everything you place by hand is part of the plant. A table you add counts towards the module count and the capacity; a road you draw moves the rows apart to make room. The drawing tools — lines, shapes, text, dimensions, measurements — are covered separately in Annotations, measuring and layers, because they change the drawing rather than the plant.
Turning Sketch Mode on and off
Sketch sits in the Layout view's tools, to the right of the view tabs, and starts off. Sketch is a tool of the Layout view: it is available only there, and switching to another view switches Sketch off. See Views for the tools row.
Click Sketch and the left column changes. The pinned Generate Layout button gives way to an orange ● Sketch Mode banner with the table count on its right and one button, Exit Sketch Mode — apply edits, recalc totals; the input tabs are replaced by the tool palette; and an orange contextual bar appears above the plot. The status line reads "Sketch Mode ON — select a tool from the left panel."

Click Exit Sketch Mode — apply edits, recalc totals and the inputs come back. What happens next depends on what changed:
| What changed | What happens | Status line |
|---|---|---|
| Nothing (a line colour alone does not count) | Nothing is recomputed, redrawn or re-routed | "Sketch Mode OFF." |
| Only trenches | No re-route. Trench totals are recomputed, and a deleted automatic trench stays deleted | "Sketch changes applied — trench totals updated." |
| The layout, with Calculate cables on | The plant totals are recomputed, the inverters or SMBs placed again and every cable routed again | "Sketch changes applied — recalculating inverter placement and cables…", then a finish line starting "Sketch changes applied" |
| The layout, with Calculate cables off | The plant totals are recomputed and the inverters or SMBs placed again | "Sketch changes applied — placing inverters/SMBs on revised layout…", then the same finish line |
The plant totals are recomputed when you leave Sketch Mode, not while you are editing. Module count and capacity in the Summary view and the plant chips can stay at their pre-edit figures until you exit, so exit before reading the Summary, exporting, or calculating energy.
How the palette is organised

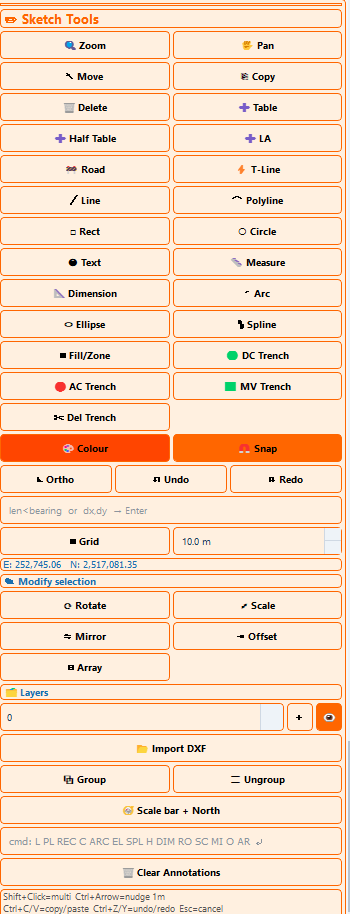

The palette is grouped. Pick a tool, act on the plot, and the tool stays armed until you pick another; one tool is active at a time.

| Group | Tools | Covered in |
|---|---|---|
| PLANT OBJECTS | ➕ Table · ➕ Half Table · ➕ LA · 🚧 Road · ⚡ T-Line | this page |
| CABLE TRENCHES | 🟢 DC Trench · 🔴 AC Trench · 🟩 MV Trench · ✂ Del Trench | this page |
| DRAW | ╱ Line · ⌒ Polyline · □ Rect · ○ Circle · More shapes (Arc, Ellipse, Spline, Fill/Zone) | Annotations |
| ANNOTATE | 🅣 Text · 📏 Measure · 📐 Dimension · 🧭 Scale bar + N | Annotations |
| SELECT & EDIT | ↖ Move · ⎘ Copy · 🗑 Delete | this page |
| MODIFY SELECTION | ⟳ Rotate · ⤢ Scale · ⇋ Mirror · ⇥ Offset · ▤ Array · ⧉ Group · ⿲ Ungroup | Annotations |
| IMPORT & CLEAR | 📂 Import DXF · 🗑 Clear Annotations | Annotations |
| COMMAND | a typed command line | Annotations |
On a tracker plant the plant objects read ➕ Tracker and ➕ Half Tracker instead.

Under the palette a hint summarises the keyboard: "Shift+Click = multi · Ctrl+Arrow = nudge 1 m · Ctrl+C/V = copy/paste · Ctrl+Z/Y = undo/redo · Esc = cancel. Rubber-band: drag →right = window, ←left = crossing. Click a start point, then type len<bearing / dx,dy ↵ in the bar above the plot."
Moving around while you edit
In Sketch Mode a plain drag belongs to the tool, so the view has its own gestures, and they work under any tool:
| Gesture | What it does |
|---|---|
| Middle button drag | Pans |
| Space + drag | Pans |
| Mouse wheel | Zooms at the cursor |
| F | Fits the whole plant |
The Home, Pan and Zoom icons in the Layout tools are there too. While Pan or Zoom is on, a drag on the plot moves the view and the sketch tool ignores it, so click the icon off before you draw.
The contextual bar
The orange strip above the plot holds the drawing aids and the numeric entry. It is present only in Sketch Mode.

| Control | Default | What it does |
|---|---|---|
| 🧲 Snap | on | What you click snaps to nearby geometry — corners, edge midpoints, centres — so a trench meets a control room exactly rather than nearly |
| ⊾ Ortho | off | What you draw is held horizontal or vertical, so a trench cannot pick up an accidental few degrees |
| ▦ Grid + spacing | off, 10.0 m | Draws a reference grid at the spacing you set (0.5–1000 m) |
| 🎨 Colour | orange-red | The stroke colour for what you draw next |
| Layer, +, 👁 | layer 0 | The active annotation layer, a new layer, and show or hide the active layer |
| Numeric entry | — | "len<bearing or dx,dy → Enter": a typed length and direction for the point you are about to place |
| E: — N: — | — | The live cursor position in metres |
| ↶ Undo · ↷ Redo | — | Step back and forward through your edits |
🧲 Snap and ⊾ Ortho are the two to have on before drawing anything you intend to build from. A trench drawn free-hand a degree or two off square looks right on the screen and is a drawing nobody can set out from.
The numeric entry takes over from the mouse for the second point of anything:
click a start point, then type 25.4<30 for 25.4 m at a bearing of 30°,
10,5 for 10 m east and 5 m north, or a bare 25.4 for that distance along
the cursor direction — or a radius — and press Enter.
Selecting
↖ Move is the tool you spend most of your time in. It selects, it drags, and it is the tool that repositions anything you have already placed.

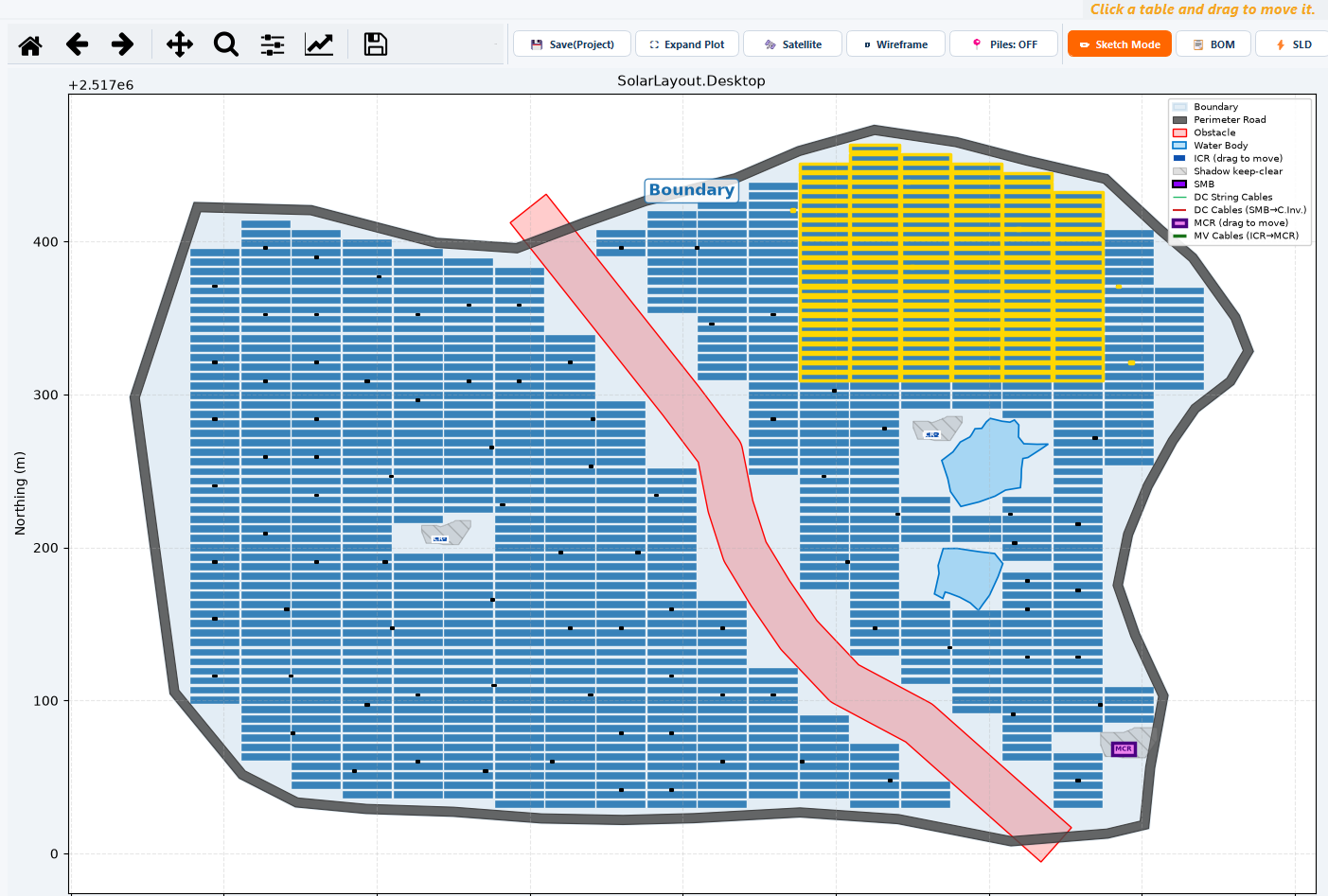

| Action | What it does |
|---|---|
| Click an object | Selects it |
| Shift+click another object | Adds it to the selection |
| Drag on empty space to the right | A window rubber band: selects what lies entirely inside the box |
| Drag on empty space to the left | A crossing rubber band: selects everything the box touches |
| Drag any selected object | Moves the whole selection together |
| Ctrl+arrow key | Nudges the selection 1 m in that direction |
| Ctrl+C / Ctrl+V | Copies and pastes the selection |
| Ctrl+Z / Ctrl+Y | Undo and redo |
| Esc | Cancels the tool or clears what it was doing |

The two rubber bands are the CAD convention and worth learning: a window selection is for picking a clean block of tables without catching the row beside it; a crossing selection is for grabbing every trench that passes through an area. The 1 m nudge is how you work at table scale: pick up a table with the mouse, drop it roughly, then step it into position without touching the mouse again.
The MODIFY SELECTION group — rotate, scale, mirror, offset, array, group, ungroup — is greyed out until there is a selection it can act on. Those tools are described with the drawing tools on Annotations, measuring and layers.
Moving a building
Buildings move in Sketch Mode only. Outside it the Layout view is read-only, and a drag on a building pans the view.
Press on an ICR, the MCR, a USS, a handover point or a placed object, under any palette tool, drag it and release. The press belongs to the view instead while Space is held or a toolbar tool is on, and it is ignored while cables are being routed.
| Building | Where it can drop |
|---|---|
| ICR | Fully inside the usable area, or it snaps back to where it started. The tables rebuild around the new position: those under the footprint are cleared and those it vacated are available again. The ICR count does not change |
| MCR, USS, handover point, object | Anywhere |
See Inverter control rooms and Main control room, substations and street lights.
Moving, copying and deleting
| Tool | What you do | What happens |
|---|---|---|
| ↖ Move | Select, then drag | The selection moves together |
| ⎘ Copy | Click a table | A copy is placed 5 m east and 5 m north of it |
| 🗑 Delete | Click any object | The object is removed |
To copy several things at once, select them with ↖ Move, then Ctrl+C and Ctrl+V, which pastes 5 m east and 5 m north. The offset means a copy lands clear of the original, so you can see it and drag it where it belongs.
🗑 Delete removes on a single click, with no confirmation. ↶ Undo is the way back.
Placing plant objects
Each of these adds a real object to the plant, not a drawing of one.
| Tool | What you do | Effect on the layout |
|---|---|---|
| ➕ Table | Click a position | Places one full MMS table, at the size and orientation set in the table configuration |
| ➕ Half Table | Click a position | Places a half unit. The button is greyed out, with the tooltip "A half table here would hold only half a string.", when the design has no half unit |
| ➕ LA | Click a position | Places a lightning arrester at that spot and removes the tables under its pile and shadow |
| 🚧 Road | Drag a straight centre-line, then enter a width | Places the road and moves the rows apart to make room, as below |
| ⚡ T-Line | Drag a straight centre-line, then enter a width | Draws the red centre-line, records the corridor as a keep-out and removes the tables inside it |
Tables you place are ordinary tables. They take their dimensions from MMS-Table Configuration, so a hand-placed table is the same object the automatic pass places. A half unit holds whole strings: half the full unit's, rounded down. See Table configuration.
The arrester grid is on the Site tab. Set the arresters with Place Lightning Arresters and its fields rather than by hand. See Lightning arresters.
Roads and transmission lines are drawn as a centre-line with a width. Drag the line, release, and a prompt asks for the width — Road width, default 5.0 m, for a road; Transmission line corridor, default 10.0 m, for a line. The width is the whole corridor: the centre-line is buffered by half of it on each side, so the strip is the width you gave, not twice it.
Line corridor (each side) on the Site tab has no part in this. That field applies to the lines read from a boundary file, and it is a setback each side rather than a total width. To clear the same ground as a 15 m setback on a line you draw here, enter a corridor width of 30 m.
A polygon obstruction, a rectangle from the Tools tab, and the main control room and objects are placed from the Tools tab rather than from the palette. See Obstructions and Site equipment.
Roads move rows
A 🚧 Road stays where you draw it, and the plant makes room around it. What the plant does depends on the road's angle to the rows.


| The road runs | What happens |
|---|---|
| Within the limit of along the rows | The rows move: north and south on fixed tilt, east and west on trackers. Each side moves just enough to clear the road plus the clearance, and the rows beyond follow, so every pitch is kept, until the plot's edge or an earlier road. Only the tables beside the road move |
| Within the limit of across the rows | Each row opens sideways to let the road through |
| Beyond the limit | The tables under the corridor are removed |
A table pushed off the land or into a keep-out is dropped. Rows that land on wider ground gain full tables, except on a plant capped to an AC target. Moved tables cannot land on ICRs, the MCR, USSs, objects, arrester piles or the buildings' shadow.
Two settings under Advanced settings ▸ Layout ▸ Sketch roads govern this. See Advanced settings.
| Field | Default | Range | What it does |
|---|---|---|---|
| Road angle that moves rows | 10 ° | 0–45 | A road this close to along or across the rows moves them |
| Road to MMS clearance | 0 m | 0–10 | Clear ground kept between a road's edge and the MMS |
The status line reports what the road did:
- "Road placed: rows moved 4.6 m south; 3 tables dropped, 0 added."
- "Road placed: it fits the gap, no rows moved."
- A road at a slant: "Road at 27° to the rows: the n tables under it were removed. Rows move only for roads within 10° of along or across the rows (Advanced settings ▸ Layout)."
⚡ T-Line, and ╱ Line or ⌒ Polyline with a width above 0, remove the tables under them and never move rows.
Cable trenches
Four tools deal with trenches. They are the reason to open Sketch Mode on a plant that is already routed: the automatic route is geometrically sound, but it knows nothing about what is already buried on the site.
| Tool | What you do |
|---|---|
| 🟢 DC Trench | Click vertices, right-click to finish: a DC trench |
| 🔴 AC Trench | Click vertices, right-click to finish: an AC trench |
| 🟩 MV Trench | Click vertices, right-click to finish: a medium-voltage trench |
| ✂ Del Trench | Click any trench — automatic or hand-drawn — to delete it |
A trench you draw replaces every automatic run of that type in the plot holding its middle, and the cable and trench totals then come from what you drew. In a central design 🔴 AC Trench draws the trunk from the SMBs to the central inverter.
Drawn trenches last. A drawn trench survives leaving Sketch Mode and a Generate Layout; the status line reports it, such as "Kept your drawn MV trench on Plot 1: it replaces the automatic MV routes there."
A deleted automatic trench stays deleted on leaving Sketch Mode when only trenches changed, because nothing re-routes. A re-route would restore it, so with Calculate cables on, the application asks first.
The Re-route cables question
Any step that would re-route cables and restore trenches you deleted opens the Re-route cables box: "Re-routing restores the automatic trenches you deleted. The trenches you drew are kept."
| Button | What it does |
|---|---|
| <Action> and restore trenches | Goes ahead, naming the step: Generate, Leave Sketch, Add obstruction, Remove obstruction, Clear obstructions, Move ICR, Move MCR, Move USS or Move handover point |
| Cancel | The default. Nothing happens, and your deleted trenches stay deleted. Cancelling Leave Sketch keeps you in Sketch Mode on the Layout view |
A move of the MCR, a USS or a handover point asks only about the medium-voltage trenches on that plot. With Calculate cables off nothing asks.
After every cable run, including the re-route of a drawn obstruction, drawn trenches are applied again and the trench totals recomputed. What that means for the reported lengths, and why trench totals are shorter than conductor totals, is on Cable routing.
An edit from start to finish
Switch Sketch Mode on
Click Sketch in the Layout view's tools. The input tabs are replaced by the tool palette and the contextual bar appears above the plot.
Zoom to the ground you are changing
Roll the mouse wheel over the area, and pan with the middle button or Space and a drag. F or Home returns to the whole plant whenever you lose your place.
Switch on the aids the edit needs
🧲 Snap for anything that has to meet existing geometry exactly. ⊾ Ortho for anything that has to run square. ▦ Grid if you want a reference to judge spacing against.
Make the edit
Select with ↖ Move and drag, nudge with Ctrl and the arrow keys, place with ➕ Table, make room with 🚧 Road, reroute with a trench tool. ↶ Undo and ↷ Redo step through anything that went wrong; Esc cancels a half-finished action.
Exit Sketch Mode
Click Exit Sketch Mode — apply edits, recalc totals. Read the module count and capacity in the Summary view and confirm they moved the way you expected.
Save the project
Save project in the view header writes the whole session to a .slp file,
sketch edits included, so the edited plant reopens as you left it. See
Projects.
What your edits mean for the numbers
Sketch Mode is not a drawing overlay. The objects you place are counted, and the counting happens when you leave.
| Summary row | What your edits do to it |
|---|---|
| Full tables | Rises and falls with full tables placed and deleted |
| Half tables | Rises and falls with half units placed and deleted |
| Modules | Recomputed from the tables actually present |
| DC capacity (MWp) | Recomputed from the module count and the module wattage |
The full row list is in Summary rows; the plant chips under the view follow the same figures.
Because the totals are recomputed rather than adjusted, the figure you read after leaving Sketch Mode is the figure the whole application then works from. The deliverables package is written from the current layout, so it carries your edited plant, not the automatic one. Hand edits do not mark results out of date; see Out-of-date results.
Two consequences worth planning around:
- Calculate energy after editing, not before. Year-one and lifetime generation are computed from the plant capacity. Edit the layout, exit Sketch Mode so the capacity settles, then calculate. See How yield is calculated.
- The bill of materials follows. It is counted from the layout, so your edits reach it when it is next opened, and edits made in the BOM itself are kept. See Bill of materials.
What Generate Layout does to your edits
Pressing Generate Layout after editing does a precise thing:
- If you are still in Sketch Mode, Generate leaves it first, so the edits are committed rather than lost.
- If the layout was edited, Generate re-places every table, tracker, inverter and control room from scratch into the available space. Hand-placed and hand-deleted tables do not survive a Generate.
- The obstructions, corridors, Sketch roads, main control room, USS, handover points, objects, annotations and drawn trenches you placed do survive. They are carried onto the fresh layout, and the obstructions and corridors are handed to the placement as ground to keep clear, so the plant is rebuilt around your constraints.
- Automatic trenches you deleted come back, after the Re-route cables question.
- An energy result is cleared; calculate energy again for the fresh layout.
The re-plot is forced back to the aligned grid: Maximize placement is switched off for it, so that pile coordinates stay uniform for construction. If you had it on, the plant you get back is the aligned one. The status line says "Re-plotting the aligned grid around your sketch edits…" while this happens.
There is no "keep my layout and refresh the numbers" path. So the order of work matters: draw your roads and corridors and place the control room first, generate, and hand-edit individual tables last — anything you do to tables before a Generate is discarded by it.
Where to go next
Annotations, measuring and layers
The drawing, measuring, modify and layer tools, and the typed command line
Pile layout
Define a pile pattern on one table and apply it to the plant
Cable routing
What the automatic routes do, and what a hand-drawn trench changes
Obstructions
Every kind of ground kept clear of tables, and how to add your own
Multi-plot sites
One boundary file can hold several separate plant boundaries. Each becomes its own plant, with its own column in the Summary view and its own unit substation.
Annotations, measuring and layers
The drafting side of Sketch Mode — shapes, text, measurements and dimensions, the modify tools, layers and groups, the command line, and a CAD reference.
