Building a diagram from the plant
The automatic single-line diagram — built from the layout, the electrical grouping and the inverter file, in a Summary and a Full form, and kept in step with the layout.

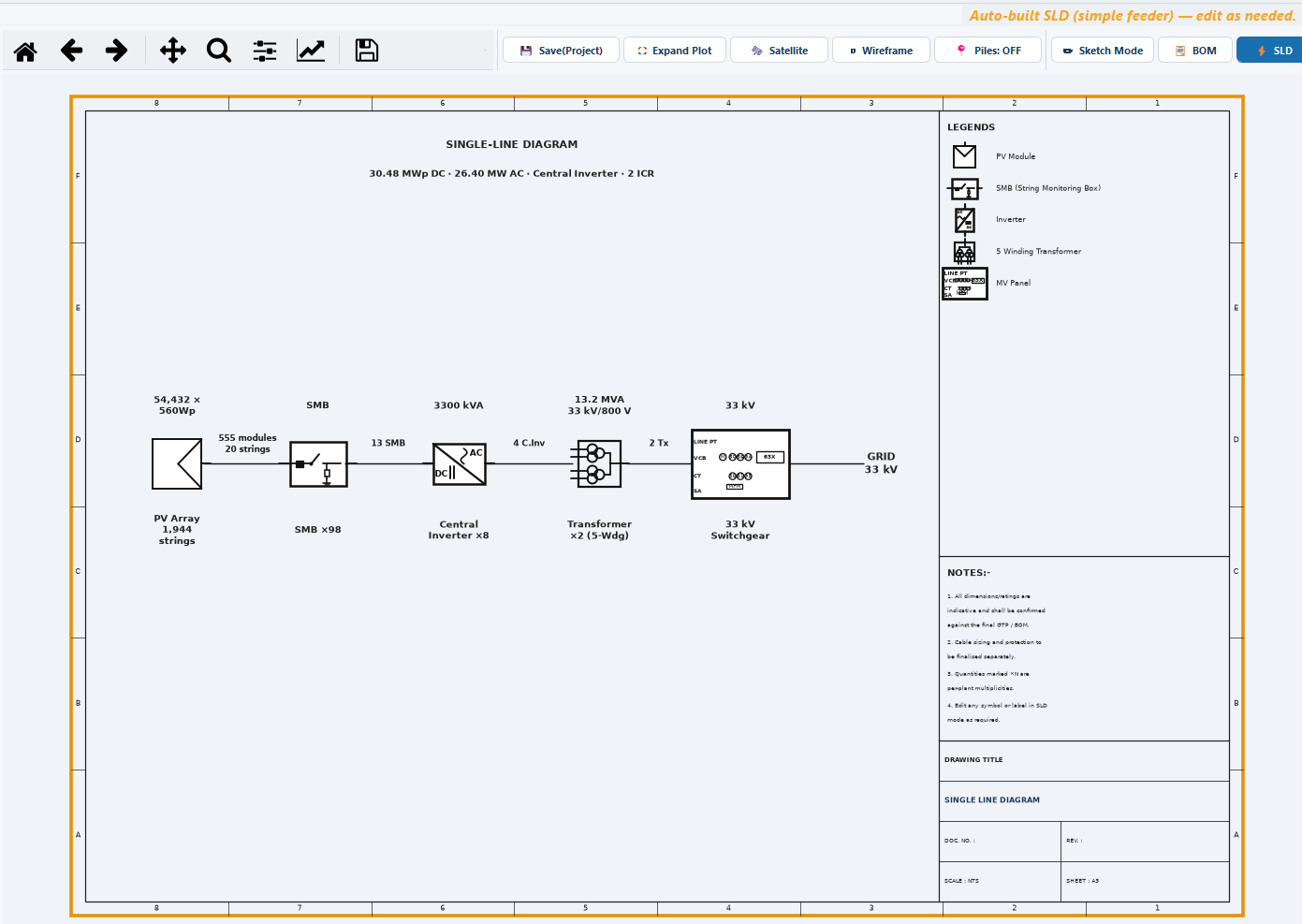

The automatic single-line diagram — SLD — is drawn from the plant you have already laid out. It reads the layout's equipment counts, the electrical grouping — the combiner boxes, the transformers, their ratings and voltages, as the ACCB & Transformer card produces them — and the inverter file, then places the chain from the modules through to the grid and annotates each block with how many of that item there are and what it is rated at.
It never reads the bill of materials, so editing the materials list or changing a BOM profile cannot change the diagram. It is a starting point, not a finished drawing: the chain is the generation-to-grid path, and the protection, switching and instrumentation an issued SLD carries is drawing work you do on top of it.

What it needs
Generate the layout
The equipment counts come from the placed plant, and the grouping is made when the plant is placed. With no layout the view reads "No layout yet". See Your first layout.
No energy calculation is needed. Running the yield calculation first adds nothing to the diagram.
Load the inverter file
The ratings and the low-voltage side come from the inverter file on the inverter card. Without one the diagram is still drawn, by count: the transformers print — kVA and 33 kV / — V, the inverter's rating and the plant's MW AC figure are left off, and the DIAGRAM card offers Load OND…. See Inverter settings.
Open the SLD view
Click the SLD tab (Ctrl+7). With a layout and no diagram, the automatic diagram is built on entry, with no question to answer.
How it stays current
An automatic diagram you have not touched rebuilds at once whenever the layout, the ACCB & Transformer card or the inverter file changes it, as one undo step. One you have edited is kept and marked out of date, with Rebuild and Keep this diagram over the drawing, so nothing you drew is lost without your say. The full rule is on Building the single-line diagram.
The chain it draws
Which chain you get follows the inverter choice made at launch, because the two topologies convert the DC in different places. See Choosing a design mode.
PV → String Inverter (×N) → ACCB (×n) → Transformer (×n) → MV Panel → Grid| Stage | What it is | What the build writes |
|---|---|---|
| PV | The module field feeding the inverters | The module count and wattage, such as 88,984 × 610Wp, and PV Array with the string count |
| String Inverter (×N) | The string inverters placed across the plant | The rating in kVA from the inverter file, and String Inverter ×N |
| ACCB (×n) | The AC combiner boxes the inverters land on. n is the grouping's count: in each ICR block, the block's inverters ÷ Inverters per ACCB, max, rounded up | ACCB ×n |
| Transformer | The inverter duty transformers taking the collected output up to medium voltage | The rating, such as 16,000 kVA or a range 12,500–16,000 kVA, the voltages such as 33 kV / 800 V, and Transformer ×n (3-Wdg) |
| MV Panel | The medium-voltage switchgear the transformers feed | 33 kV Switchgear — the card's MV voltage |
| Grid | The outgoing connection | GRID 33 kV |
The wires between the blocks carry the multiplicities: the modules and strings on one inverter (560 modules, 20 strings), the most inverters on one ACCB (15 Str.Inv), the most ACCBs on one transformer (2 ACCB), and the transformer count (8 Tx).
A Y harness and inline string fuses, where the design has them, appear as marks on the wire. The sheet is headed SINGLE-LINE DIAGRAM, with a line giving the plant's MWp DC, its MW AC (with an inverter file), the topology and the number of ICRs.
Both chains are drawn along a horizontal bus, which is why the PV module, the inverter and the transformers are placed already rotated to line up with it. See Symbol reference.
Summary or Full
The build has two forms, switched by Summary | Full on the DIAGRAM card. The status bar confirms the change, such as "SLD shown as Full."
| Form | What is drawn | Paper |
|---|---|---|
| Summary | "One chain for the whole plant." Each block carries a ×N multiplicity for how many of it the plant holds | By its rows, as below |
| Full | One row per feeder — per ACCB in a string-inverter design, per central inverter in a central-inverter design — under column heads such as PV array, String inverters, ACCB and Transformer, labelled ACCB-1, ACCB-2 … or C.Inv-1 …, and grouped onto their transformers, TX-1 · ICR-1 and so on | A3 up to 10 rows, A1 up to 28, A0 beyond |
Choose the form before you start editing. Switching rebuilds the diagram, and on an edited diagram the card warns "Switching rebuilds and discards your edits (undoable)." Summary is the readable one on a plant with dozens of machines; Full shows every feeder and every transformer separately.
The transformer symbol
The transformer symbol is chosen from the feeders on the transformer, one low-voltage winding each:
| Feeders on the transformer | Symbol |
|---|---|
| 1 | 2-winding |
| 2 | 3-winding |
| 3 | 4-winding |
| 4 or more | Multi-winding |
Summary uses the most feeders on any one transformer; Full uses each transformer's own. One multi-winding symbol draws every transformer above four windings, so read the winding count from its label, such as Transformer ×8 (3-Wdg): the label follows the grouping whichever symbol draws it.
The grouping it draws
The counts, ratings and voltages on the chain are those of the plant's electrical grouping, set on the ACCB & Transformer card on the Electrical tab — Transformer in a central-inverter design:
| Rule on the card | Default |
|---|---|
| Inverters per ACCB, max: (string designs) | 15 |
| Transformer forms (windings): | 5, 3, 2 |
| Transformer size limit: | 17.2 MVA, but never above the largest listed rating — 16,000 kVA with the default list |
| Standard transformer ratings (kVA): | 2,500, 3,150, 5,000, 6,300, 8,000, 10,000, 12,500, 16,000 |
| MV voltage: | 33.0 kV |
The grouping is made per ICR block. Each block takes the largest form first, with every transformer full, and a block whose load is over the limit drops to a smaller form. Each transformer takes the smallest listed rating at or above its load, and one that fits no listed rating prints — kVA, with a notice on the DIAGRAM card. The full rules are on the card's own page.
The diagram, the bill of materials, the Summary view and the cable schedule all read the same grouping, so the box and transformer counts agree between them.
If your scheme groups equipment differently — a different number of inverters per box, or transformer sizes you have already fixed with a supplier — set it on the card: the inverters per ACCB, the transformer forms, and your own list of ratings. An untouched diagram follows at once.
What the annotations mean
Each block on the chain is annotated with two things:
- A multiplicity, written as
×N— how many of that item the plant carries. One inverter symbol carrying a multiplicity stands for every inverter in the plant, drawn once. That is normal single-line practice, and it is what keeps the sheet readable on a plant with dozens of machines. - A rating — for the transformers, from the grouping; for the inverter, the nominal AC power in the inverter file.
Both are put on the sheet by the build. Where one is wrong — a rating that does not match the machine you are buying, or a count you have since revised — change the card, so that the diagram and everything else follow. To change only the drawing, edit the label by double-clicking it in Edit diagram, or place your own with Text. That makes the diagram an edited one.
What to do next
Check every rating
Read each one against the equipment you are actually procuring.
Add what the build does not cover
The chain carries the generation-to-grid path. Isolators, breakers, instrument transformers, meters, relays, arresters and phase indication are yours to place and wire in. See Symbol reference.
Read the title block
Click Sheet. The title block fills itself from File ▸ Company… and the project details, and prints — where they are empty. See Building the single-line diagram.
Export it
Use PDF… or DWG… on the EXPORT card. See Exporting the diagram.
